ALIO maintains a leading edge

ALIO linear products have been designed and manufactured to have no equal, in terms of performance and reliability. ALIO’S mechanical bearing stages can perform at a level of precision that alternative suppliers struggle to match. ALIO Focuses on 6-D Nano Precision® only while other manufacturers design and build to the 2-D world of planer repeatability and accuracy.

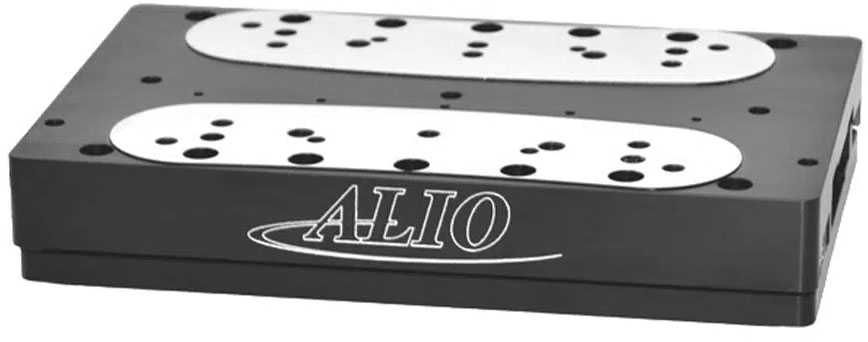

Precision Crossed Roller Bearing Linear Stages

ALIO’s Nano Precision XY Monolithic product is a 3-plate system with unmatched 6-D performance.

With years of testing, continuous design improvement, and unique manufacturing protocols, the ALIO precision crossed roller bearing stages have no equal for quality and performance. Our linear stage product family begin with 25 mm travel and go up to 400 mm of travel with motor and encoder options to fit your application needs.

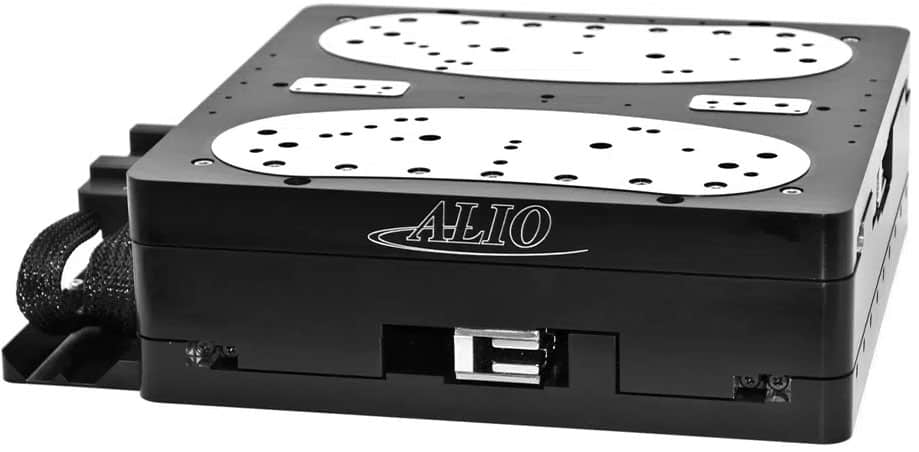

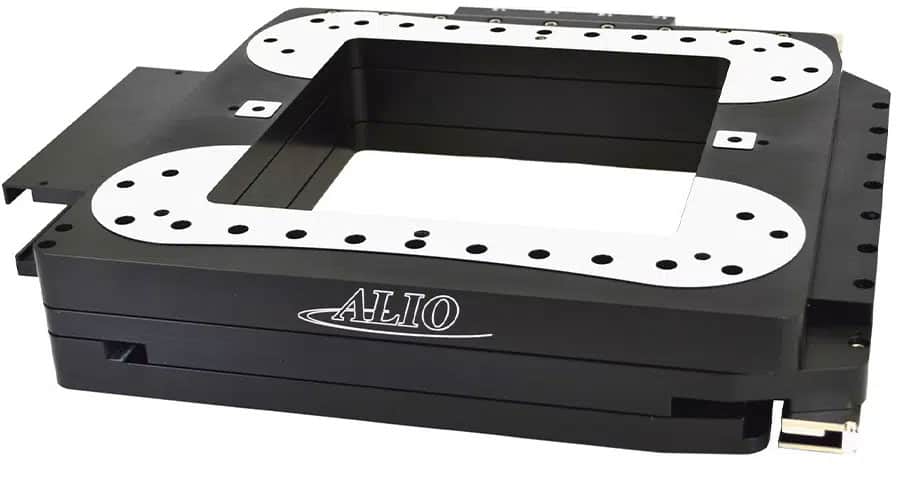

XY Linear System

ALIO’s XY monolithic TRU NANO® motion systems performance is unequaled for 6-D Nano Precision®. With nanometer straightness and flatness, you can be assured that your point precision is True Nano®.

This stage family comes with enclosed or open center versions from 50mm travel to 450mm travel. Standard axis bi-directional repeatability is less than 50 nanometers with optional 10 nanometers bi-directional repeatability for demanding metrology or manufacturing needs. Stages can come with NIST traceable data assuring nano precision not just marketing data sheet optimism.

Servo Voice Coil Z Stage

Precision and compact designs for Z-lift stages have been an industry challenge that ALIO recognized and for which the company engineered a solution.

Legacy designs such as wedges are compact but lack sub-micron precision in all 6 DOF, and linear stages with counterbalances take up space as well as making application tooling a challenge to design around. The ALIO nano-precision, air counter balanced Z lift stages solved this with voice coils (VC) and rigid precision structures that have application mounting location on all sides of the precision rectangular structure. The ALIO VC Z stages are available up to 50 mm of travel with our nano precision designs and compact counterbalancing. Similar designs for longer travels are available upon request.

Linear Servo Motor

ALIO produces CM linear servo stages for customers that need less costly True Nano® precision. CM servo motor stages still have the ALIO 6-D precision with less linear force for smaller and lower acceleration applications. The stage family uses the precision anti-skid bearings common to all other ALIO mechanical bearing products with the same 25 mm to 400 mm travel ranges.

Send us details of your motion control and part positioning requirements.

Our team will quickly evaluate and recommend the best solution to meet your specifications. Upload your part drawing files or sketches on our Contact Us form below.

Please contact us – we are ready to assist!
